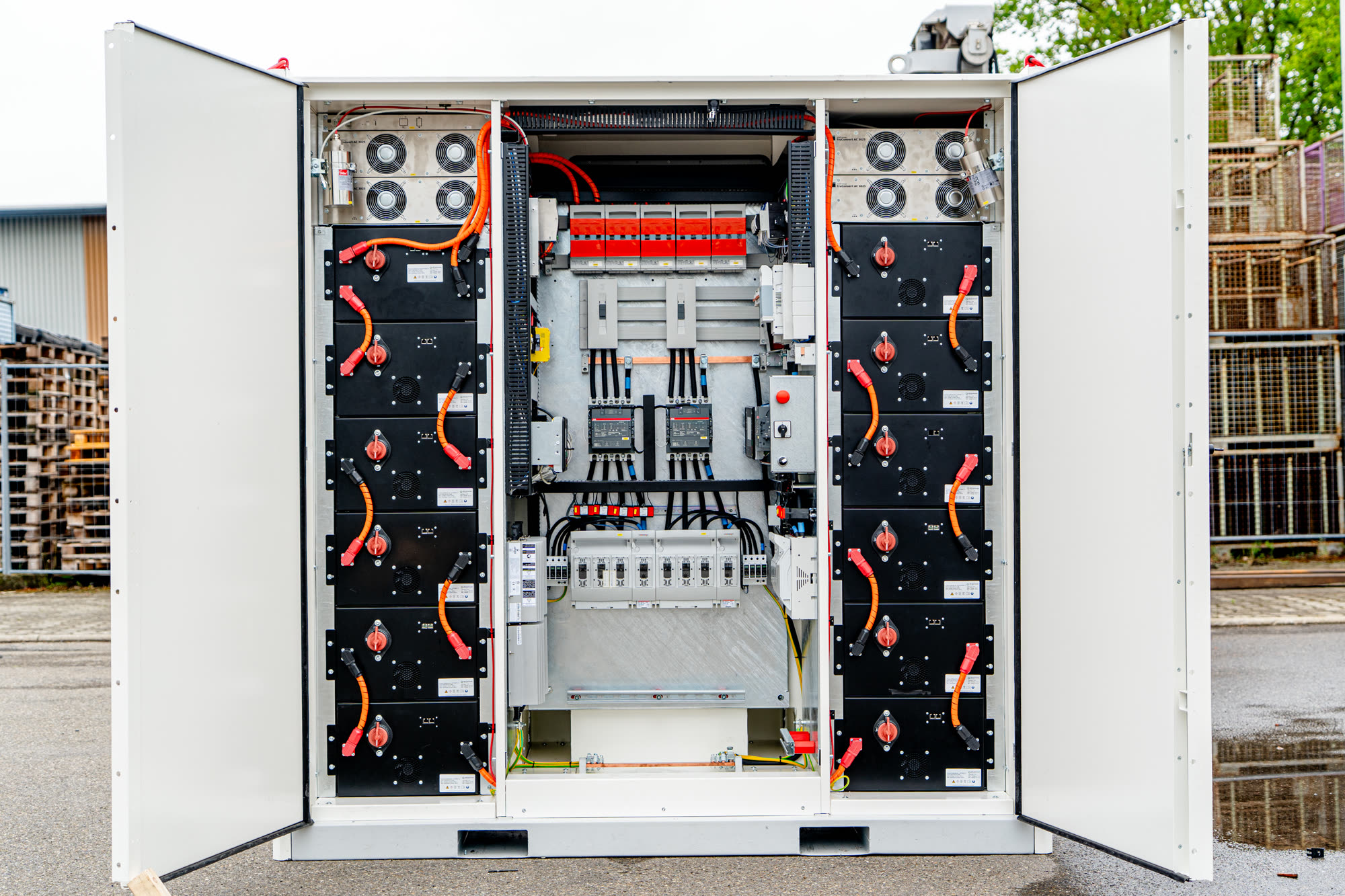

Ohmsbox
Modular battery energy storage system, grid-tied or fully off-grid — single units to multi-cluster deployments
Step 1Output power per Ohmsbox
Each Ohmsbox holds 1–4 inverters. One inverter delivers 25 kVA, so per-OB output scales linearly: more inverters → higher continuous output.
Step 2DC-DC MPPT
Optional integrated DC-coupled MPPTs per Ohmsbox for the highest round-trip efficiency. Each MPPT adds 60 kW of direct DC-coupled PV input, no separate string inverter required.
Step 3Operating mode
Defines which energy sources the BESS coordinates with. The same hardware runs grid-tied, fully off-grid, or anywhere in between.
Off-Grid Battery
Standard packEvery Ohmsbox ships with 11 of these packs as standard.
- Per Ohmsbox
- 11 packs (fixed)
- Cells
- 314 Ah
- Voltage range
- 650 V – 950 V
- Capacity
- 265 kWh per OB
- C-rate
- 0.5 C charge / discharge
Step 4Deployment
Single units cover up to 100 kVA. For >100 kVA up to 1 MVA, configure clusters of up to 10 Ohmsboxes each. Add more clusters to scale further — there is no upper limit.
Need something we can't configure here?
Custom Ohmsbox specs — mixed output power, MPPT counts or operating modes across single units or clusters — multi-site rollouts and non-standard integrations are configured directly with our sales team.
No PV on site yet? We also source and install the solar array itself as part of the project.
